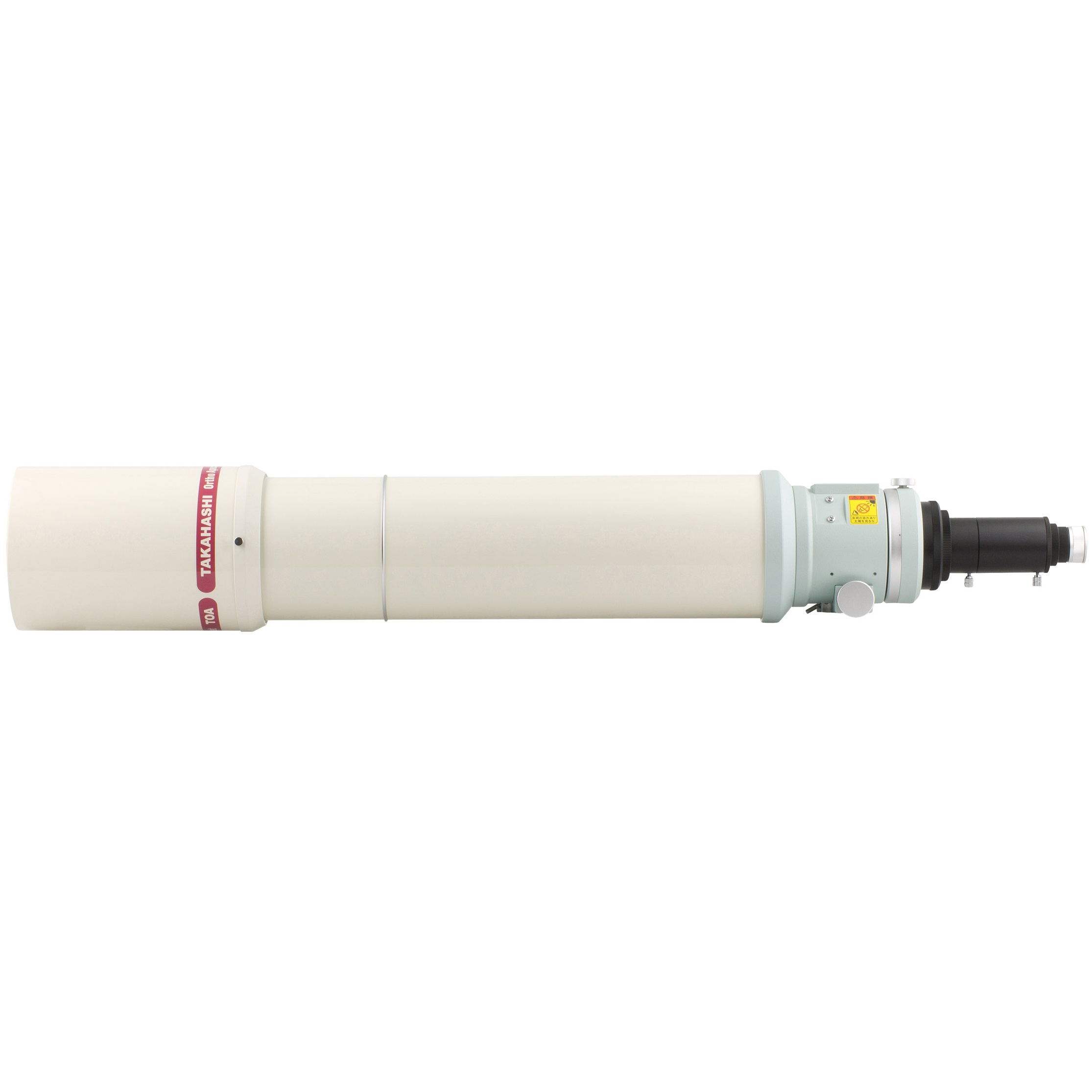

Takahashi TOA-130NFB, tube only
Delivery time ~ 2 weeks!
Diam.: 130mm
Focus: 1000mm
Mount: OTA
Transportgewicht: 21kg (Versandkosten)
EAN Code:
Lieferbarkeit
Wien: Wir bestellen gerne für Sie!
Linz: Wir bestellen gerne für Sie!
Lager: bitte anfragen!
Öffnungszeiten
Woanders billiger? weiter...

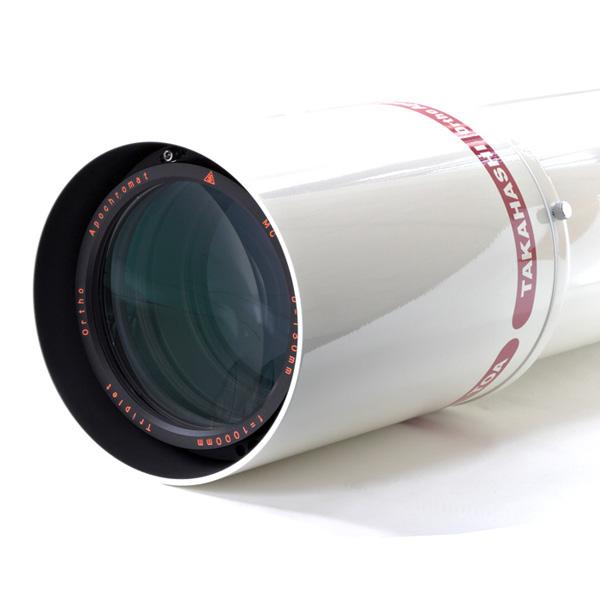

The Triplet Ortho-Apochromat concept of the TOA refractors makes it possible to combine sharpness and extraordinary contrast. This unique optical formula, based on a highly air-spaced ED triplet, has the advantage of completely eliminating spherical aberration while having the best chromatic correction in the Takahashi telescopes range. TOA excels in both high planetary resolution and deep sky imaging, fully exploiting the capabilities of cameras with the largest sensors.

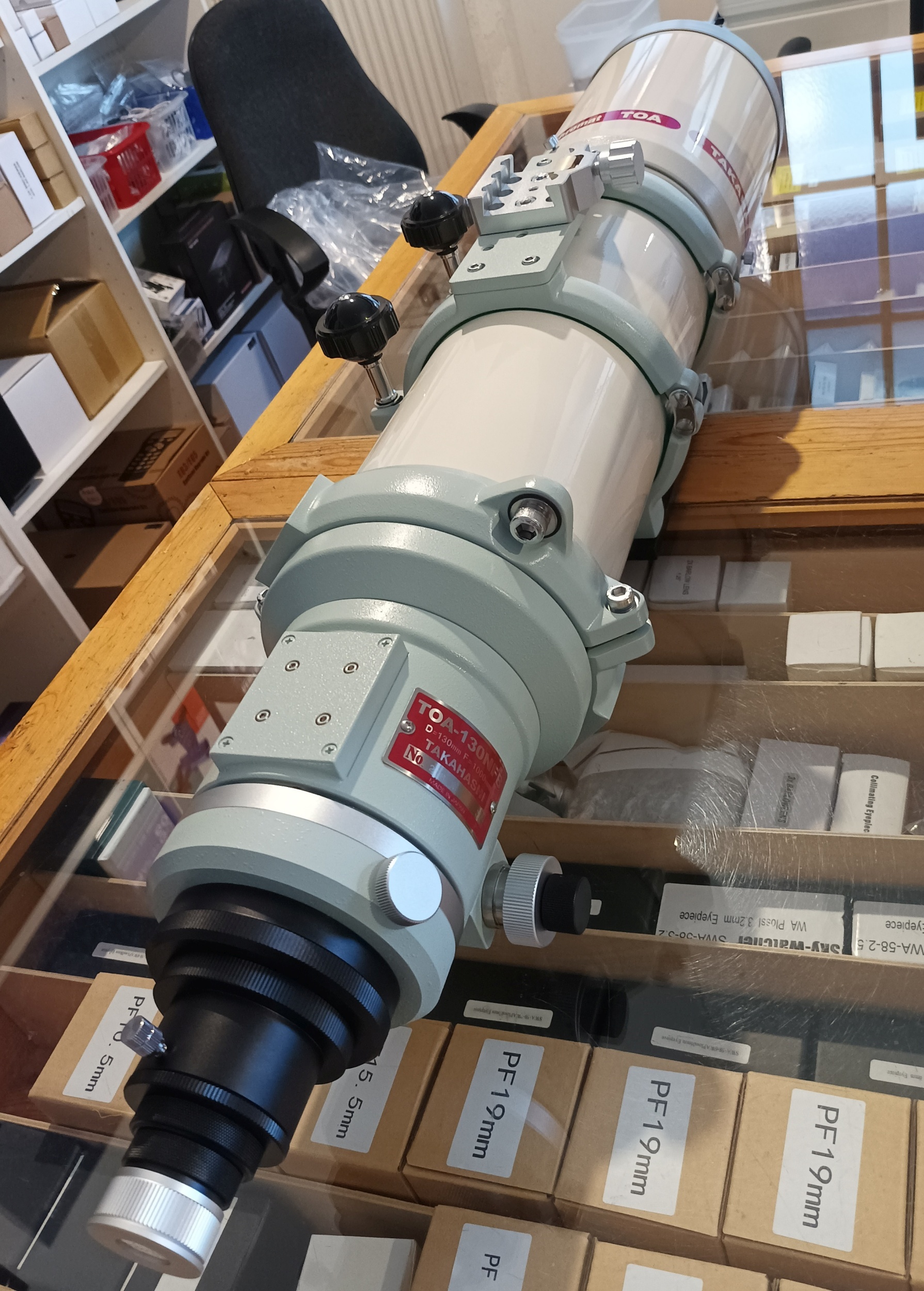

The TOA-130NFB is supplied with a retractable dew shield. The oversized 102 mm diameter rack-and-pinion focuser is equipped with a 1/7 ratio microfocuser and with a CAA (Camera Angle Adjuster) for photographic framing. Thanks to this configuration, the NFB is resolutely turned towards imaging. It allows more robust photo shooting, especially with large CCD cameras, without generating mechanical constraints. This focuser accepts some specific accessories, such as the 67 FL super-corrector which offers an incredible 92 mm image circle (60% unvignetted).

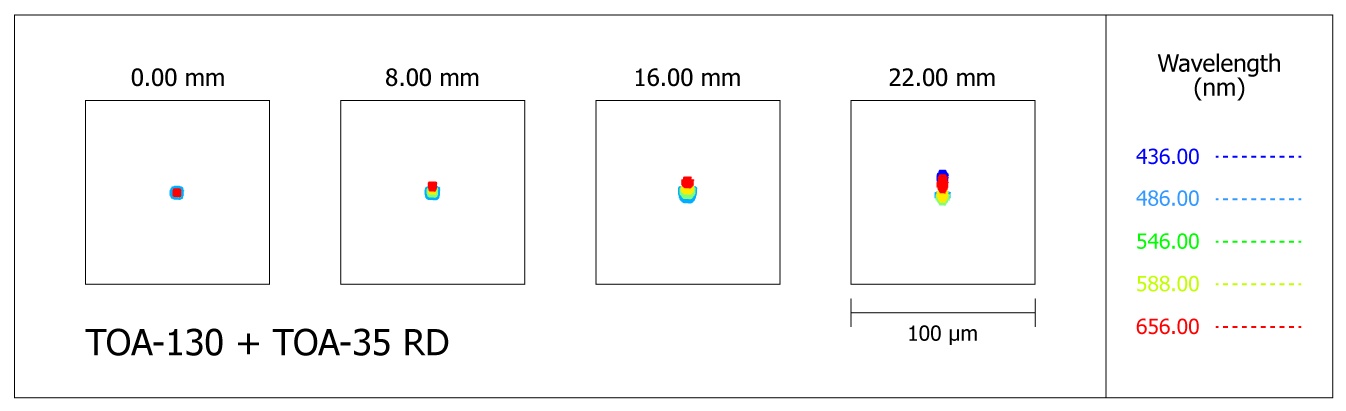

TOA130NFB_Systemchart 0.75x Reducer.pdf
TOA130NFB_Systemchart 0.7x Reducer.pdf

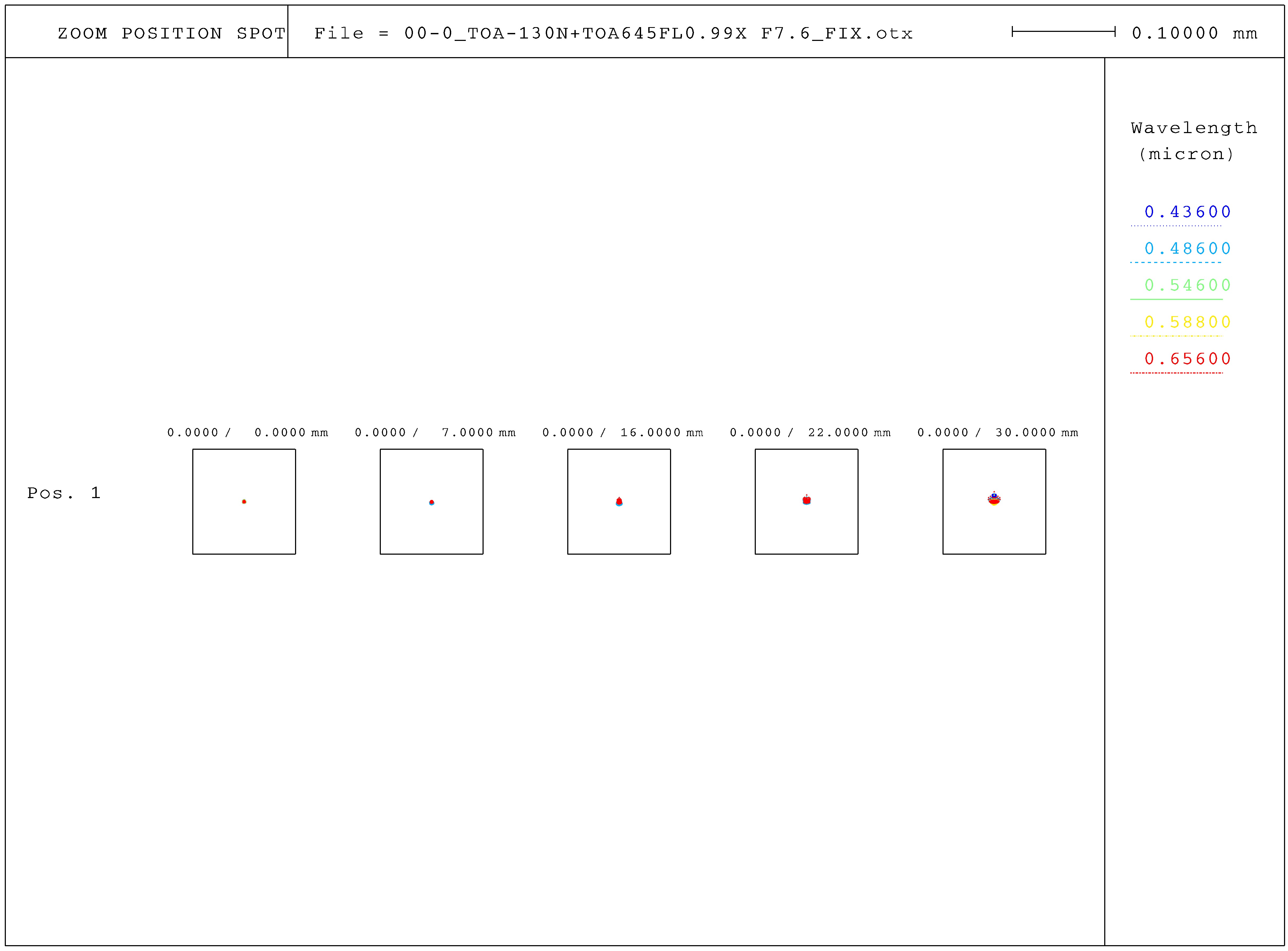

TOA130NFB_Systemchart 645-Flattener.pdf
TOA130NFB_Systemchart Extender.pdf

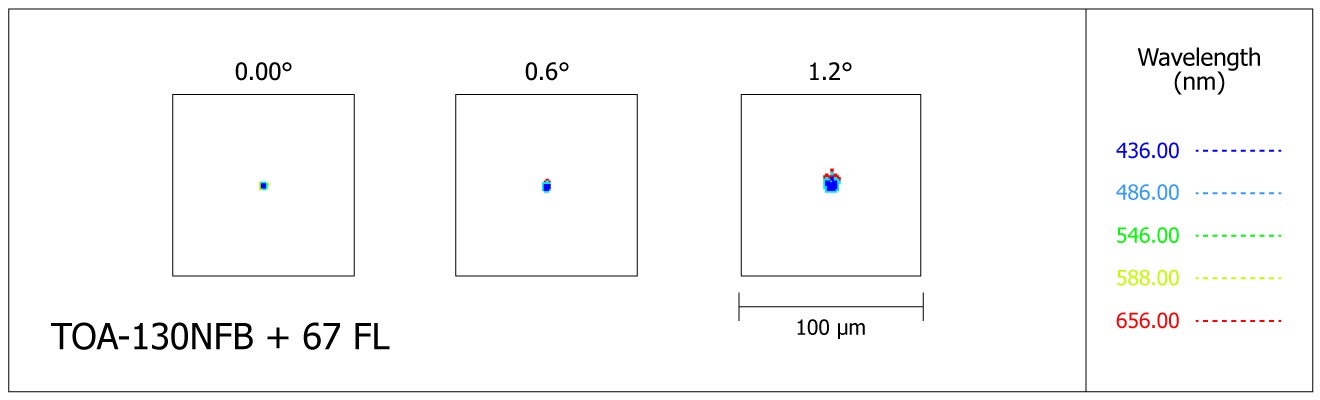

TOA130NFB_Systemchart Flattener 6x7.pdf

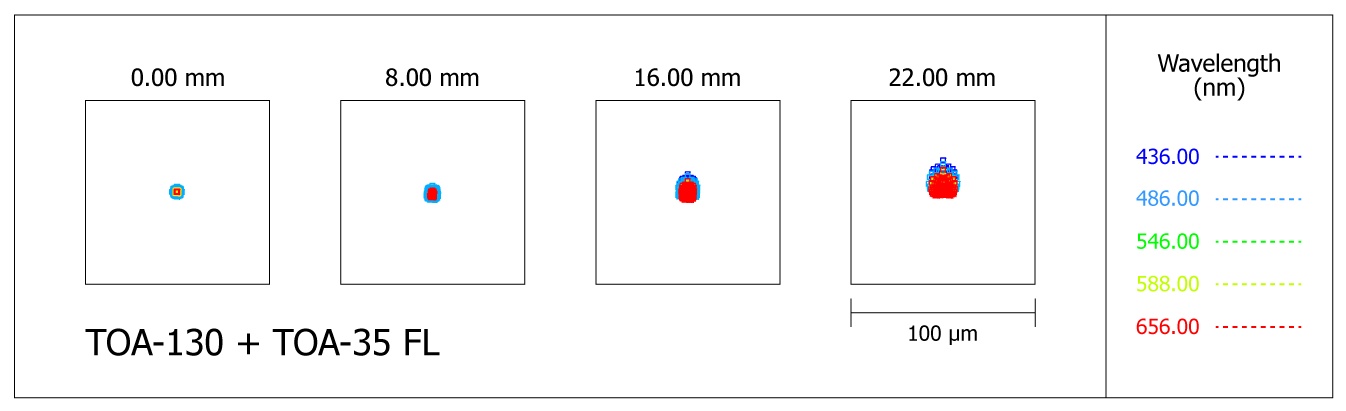

TOA130NFB_Systemchart Flattener.pdf
TOA130NFB_Systemchart Super-Reducer.pdf

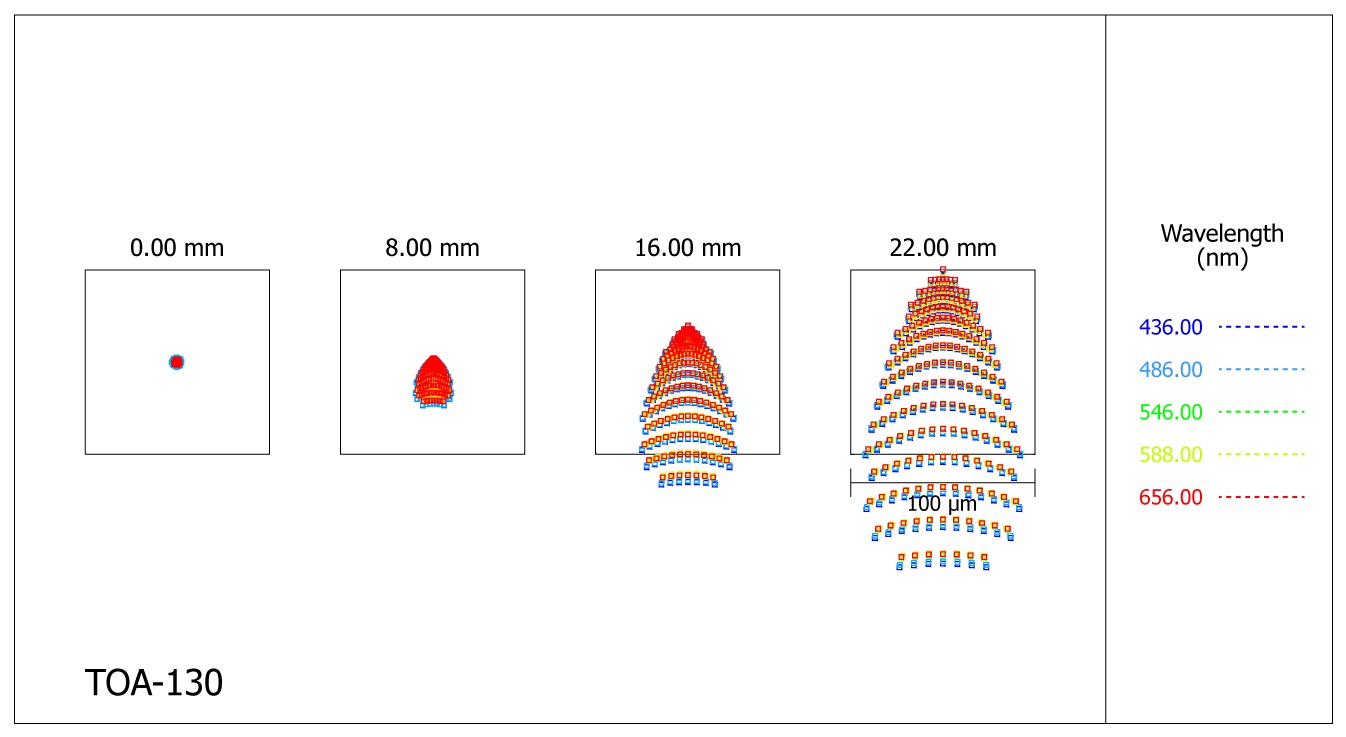

TOA130NFB_Systemchart.pdf
