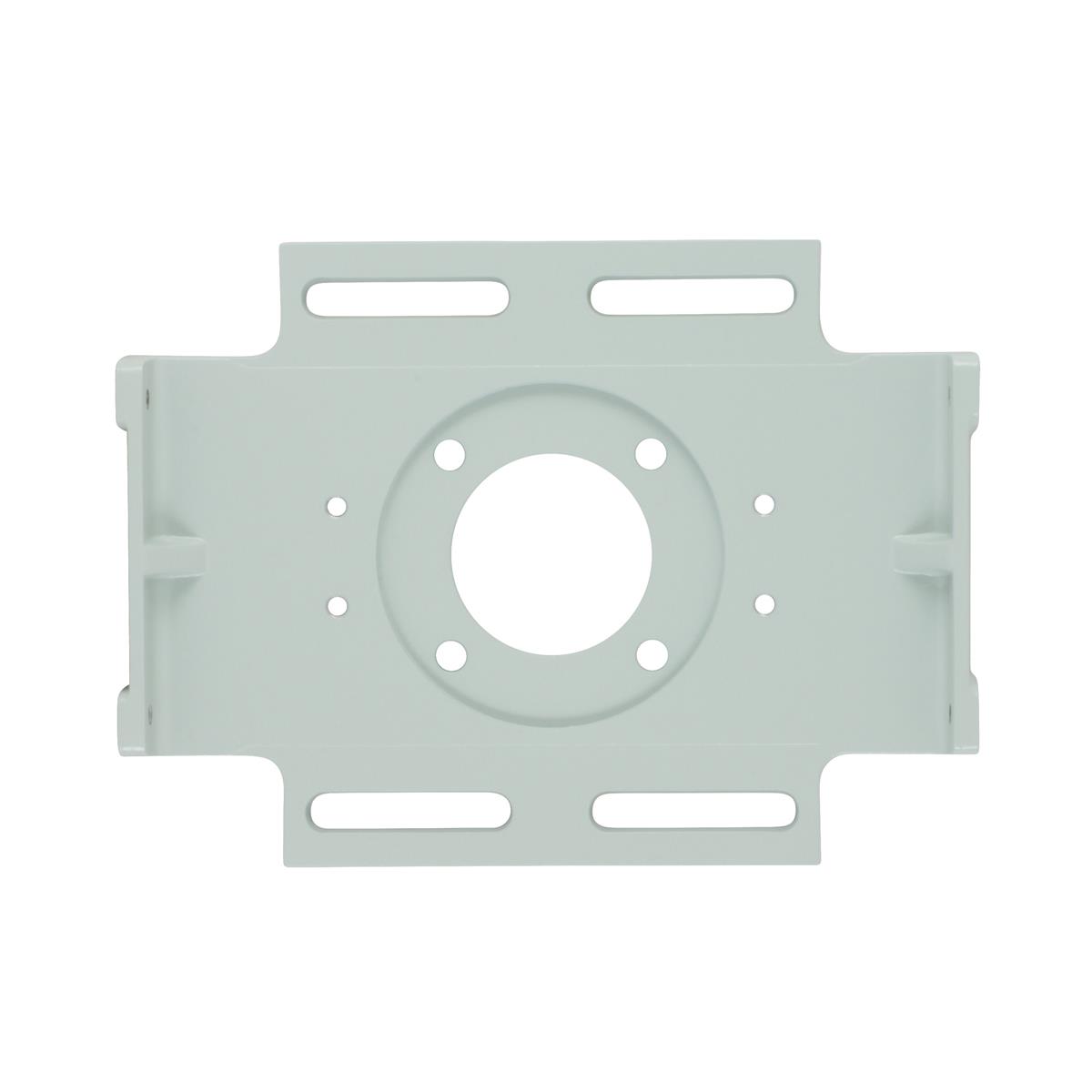

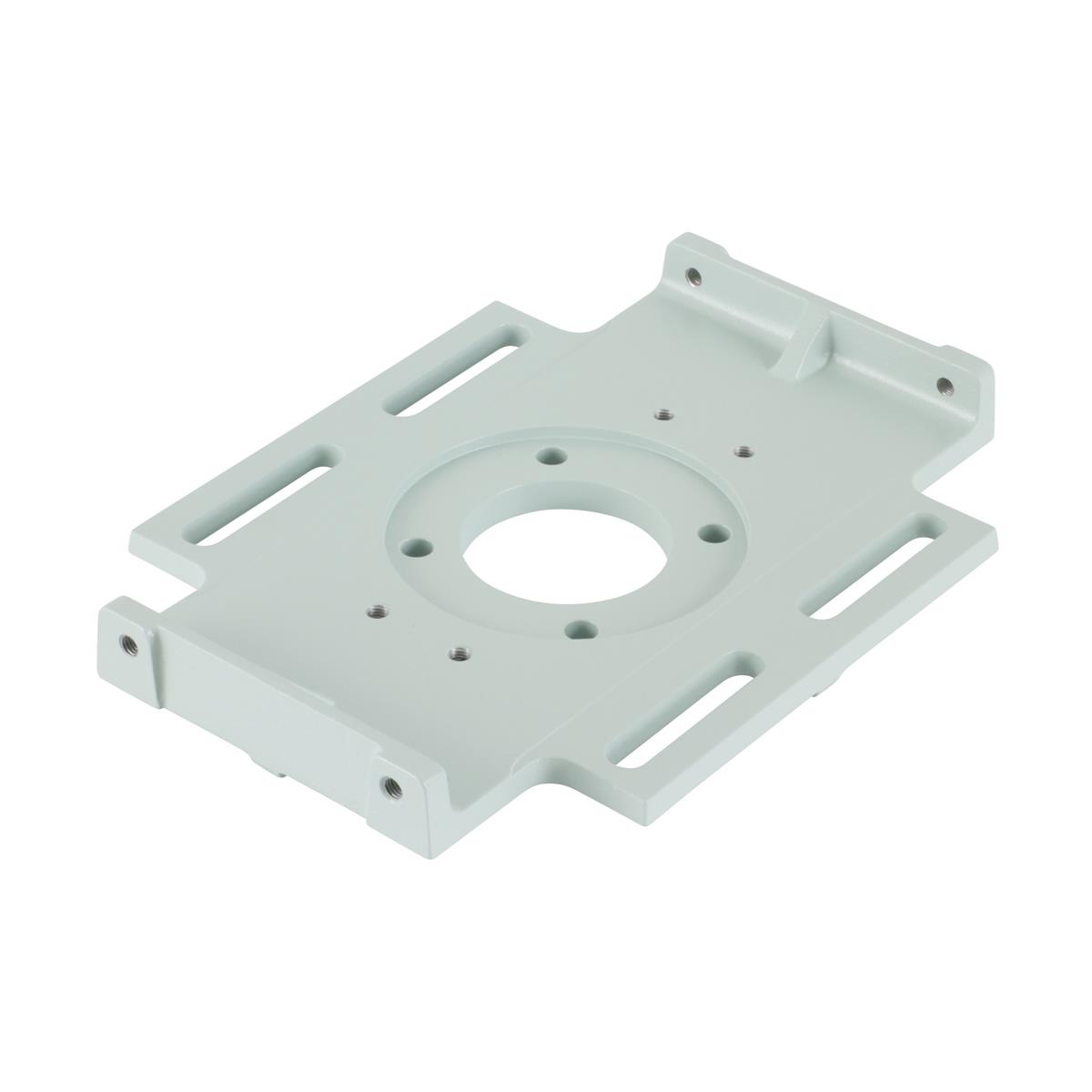

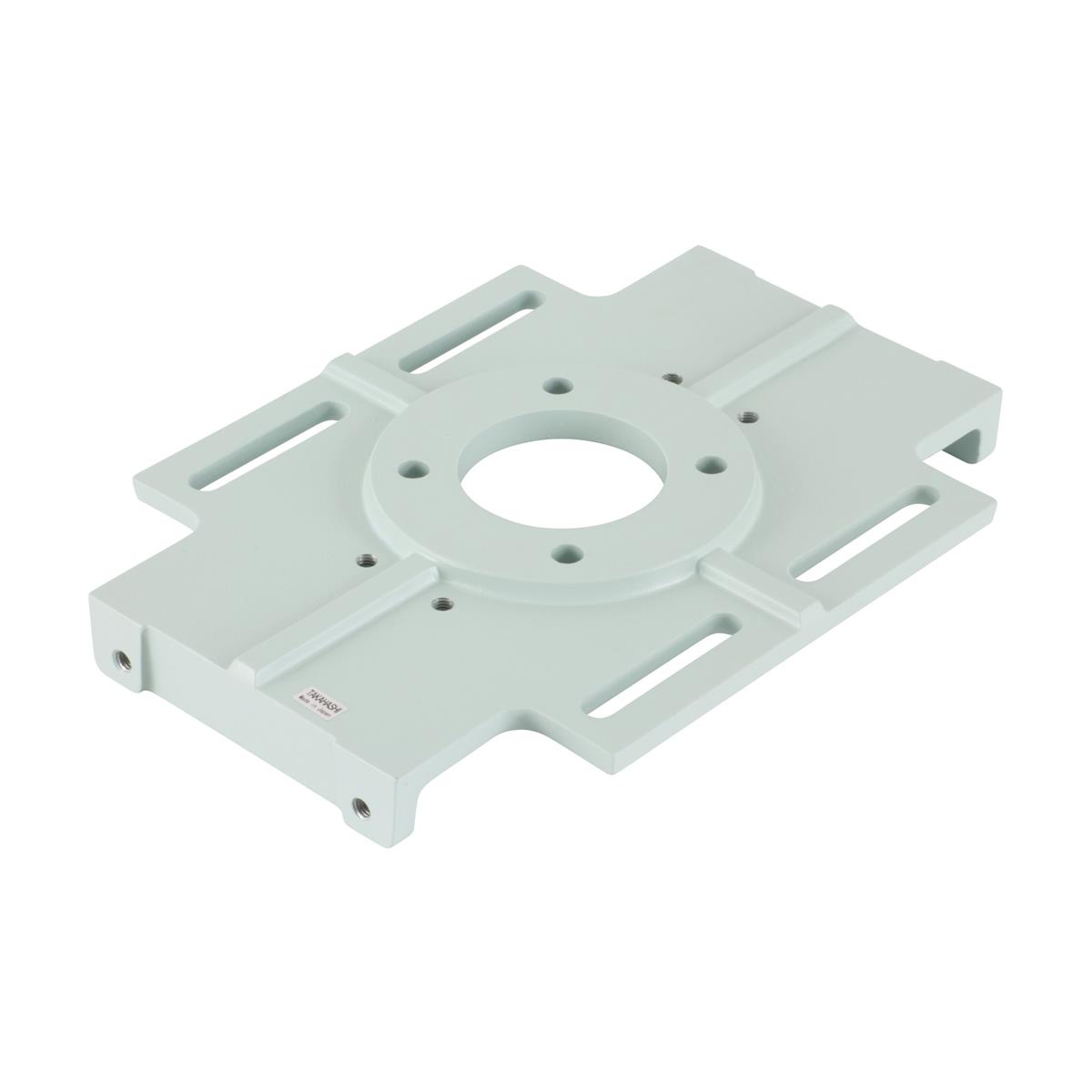

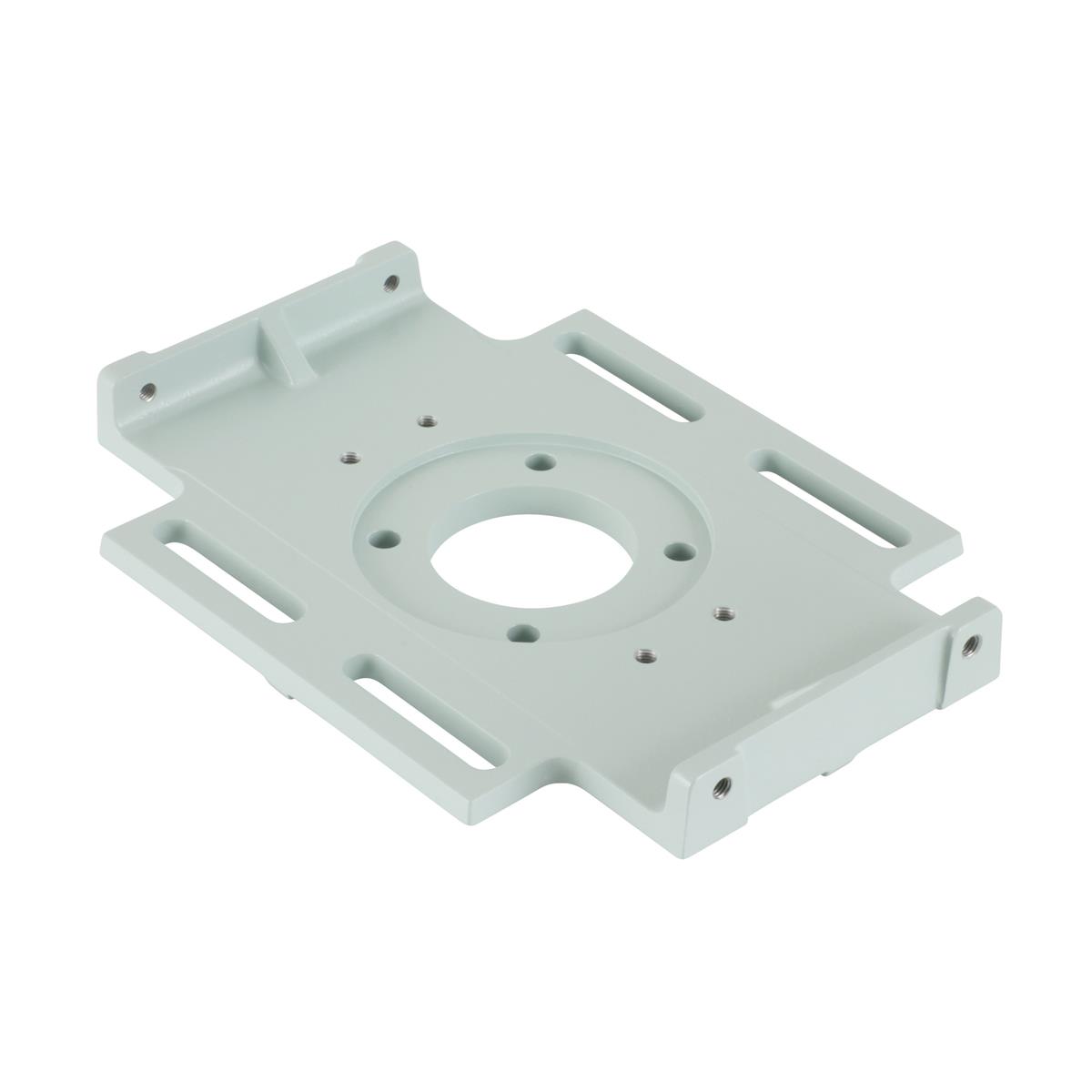

The Accessory Mount Plate L is designed for the largest Takahashi, EM-400 and EM-500 equatorial mounts. It is the classic interface to attach the tube rings of the brands largest optical tubes, such as the TOA-150 or the Mewlon-300CRS. It is also compatible with the old JP-Z and NJP mounts.

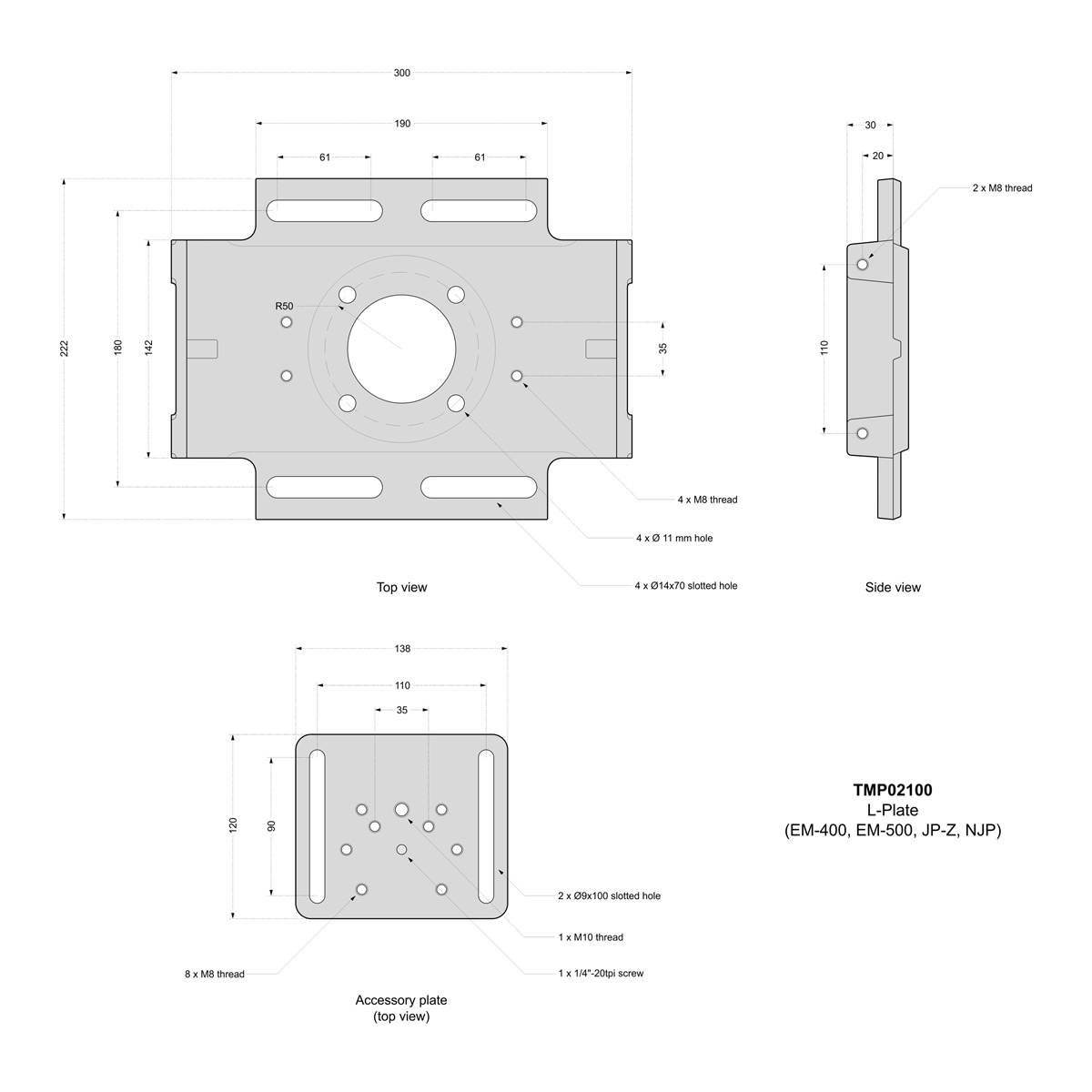

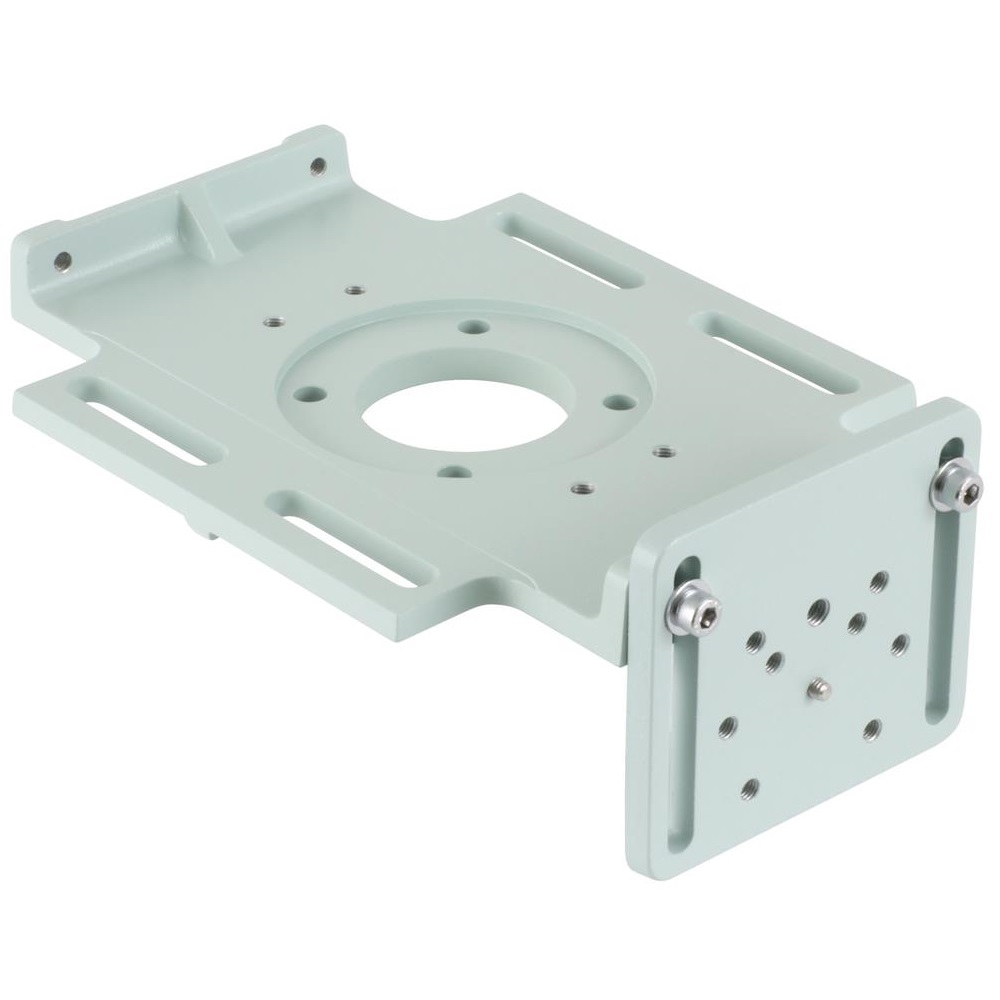

Fixing to the mount is done by means of 4 M10 screws. The plate has 4 openings for fixing the tube rings, with the possibility of a slight offset for balancing. An additional plate, very modular and equipped with numerous threads, including several M8, allows the accessories to be fixed in parallel with the optical tube to be received. As with the main plate, the additional plate has openings to facilitate balancing of the assembly.

Weight of the complete plate: 2 kg. Weight of the plate: 1,54 kg.
